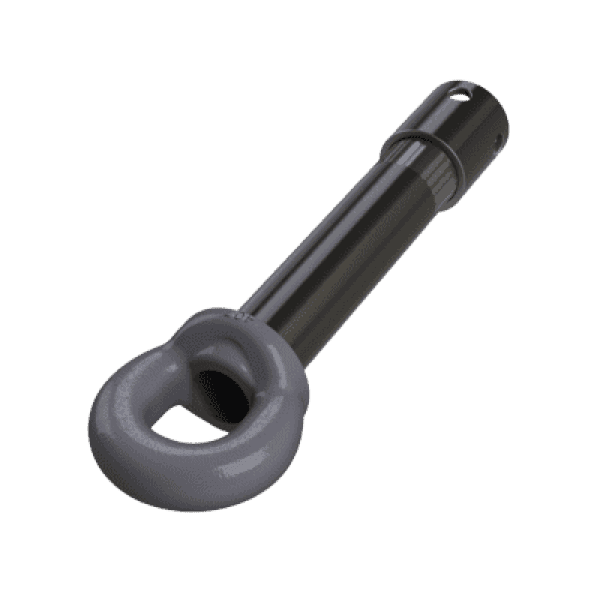

407SE SWIVEL DRAWBAR EYE

Our Swivel Drawbar Eyes are only to be used with our Front End Housings.

Description

MODELS

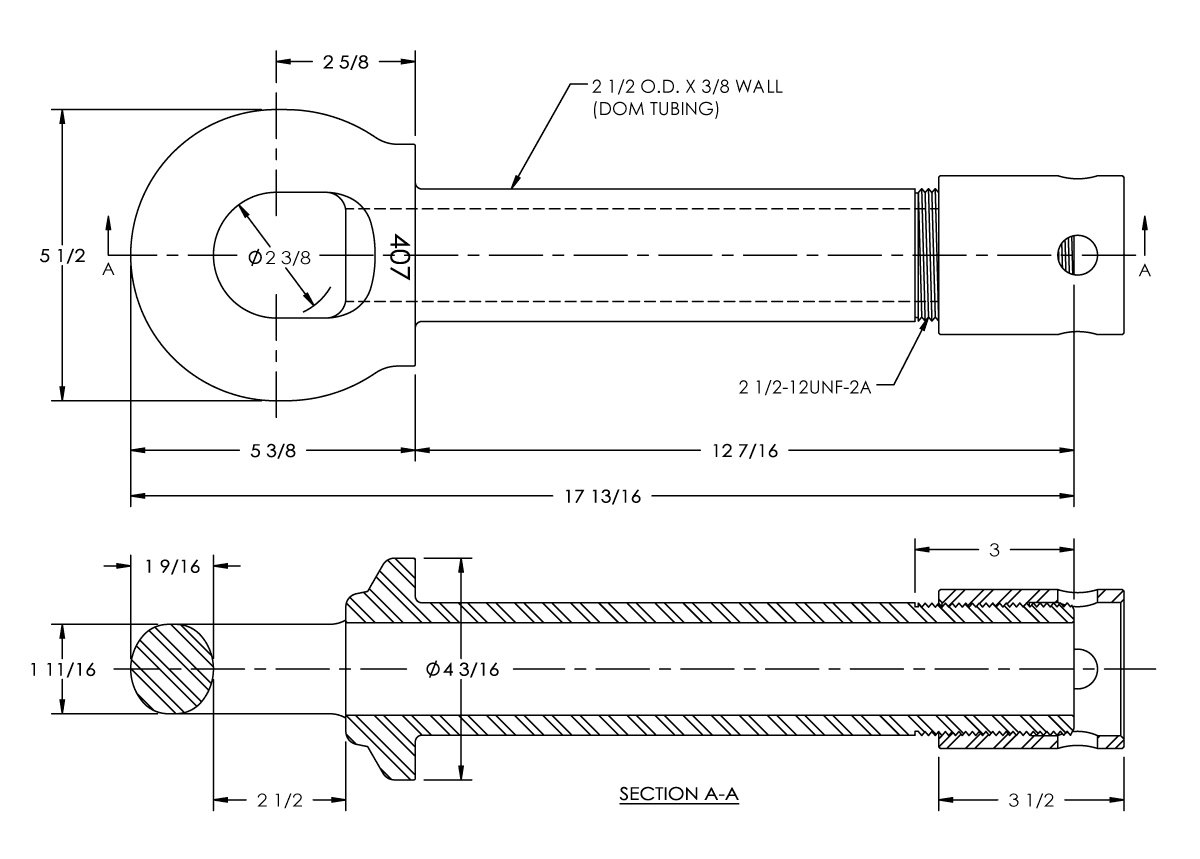

407SE 407SE Drawbar eye, 2 3/8″ ID, shaft 2 1/2″ OD x 3/8″ wall DOM, shaft length 12 7/16″.
Parts Included: 421 Sleeve Nut.
Nut must be secured by installer (wire tied, etc.)

SPECIFICATIONS

Maximum Gross Trailer Weight 100,000 lbs. (45,359 kg)
Maximum Tongue Weight 3,900 lbs. (1,769 kg)
Inside Diameter 2 3/8 in. (60 mm)
Unit Weight 19.5 lbs. (8.8 kg)
  • Front End Assemblies

    546 FRONT END HOUSING

    This front end housing was designed for use with our: 207SE, 307SE, 405SE, 407SE & 410SE Swivel Drawbar Eyes ONLY.
  • Front End Assemblies

    556 FRONT END HOUSING

    This front end housing was designed for use with our: 207SE, 307SE, 405SE, 407SE & 410SE Swivel Drawbar Eyes ONLY.
