6A Weld-On Drawbar Eye

Description

MODELS

Model #	Part #	Description
6A	10000841	Drawbar Eye, Weld-On, 2 3/8" ID

ACCESSORY PARTS

Model #	Part #	Description
14032	10000075	Wear Gage

SPECIFICATIONS

Maximum Tongue Weight	15,000 lbs. (6,804 kg)
Maximum Gross Trailer Weight	100,000 lbs. (45,359 kg)
Inside Diameter	2 3/8 in. (60 mm)
Unit Weight	18.9 lbs. (8.6 kg)

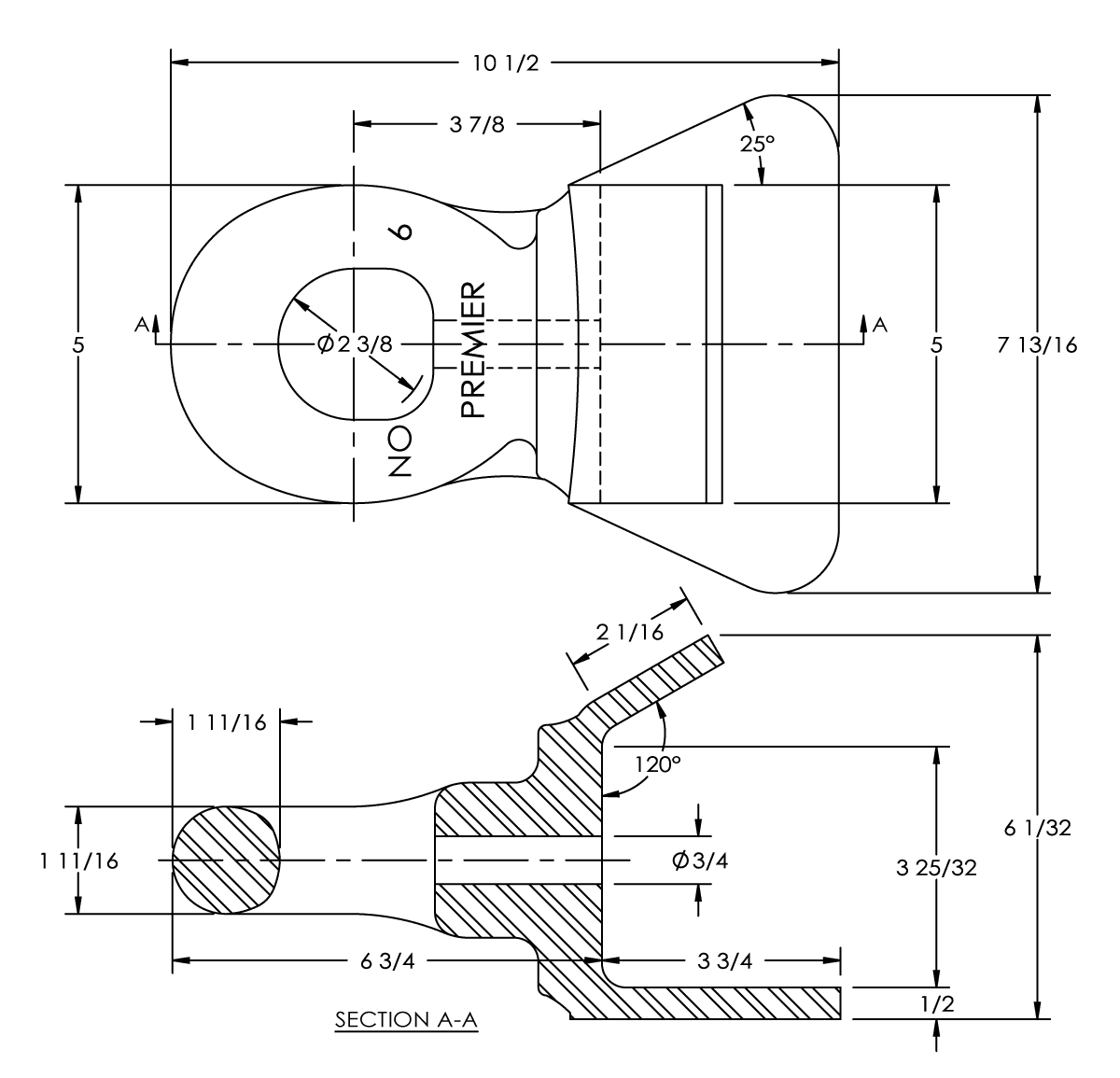

Drawings

Installation

6A Drawbar Eye Installation

Optional Accessories
