307 Swivel Drawbar Eyes

Premier’s 307 Swivel Drawbar Eyes are only to be used with our Front End Housings.  Bushings are not included.  Check out the Optional Accessories tab to access our selection of front ends which include the housing, bushings, and washer.  With a maximum gross trailer weight of 150,000 lbs., the 307 is perfect for a variety of heavy-duty applications.

Category:

Description

MODELS

Model #Part #Parts Included
307L10000805307 Drawbar Eye, 208 Snap Ring, 416 Locknut
307S10000804307 Drawbar Eye, 208 Snap Ring, 416 Locknut
307SE10000806307 Drawbar Eye, 208 Snap Ring, 416 Locknut
307K10000803307 Drawbar Eye, 208SPL Snap Ring, 416K Locknut

307 SPECIFICATIONS

Maximum Gross Trailer Weight:150,000 lbs. (68,039 kg)
Maximum Tongue Weight:2,500 lbs. (1,134 kg)
Inside Diameter:3 in. (76 mm)

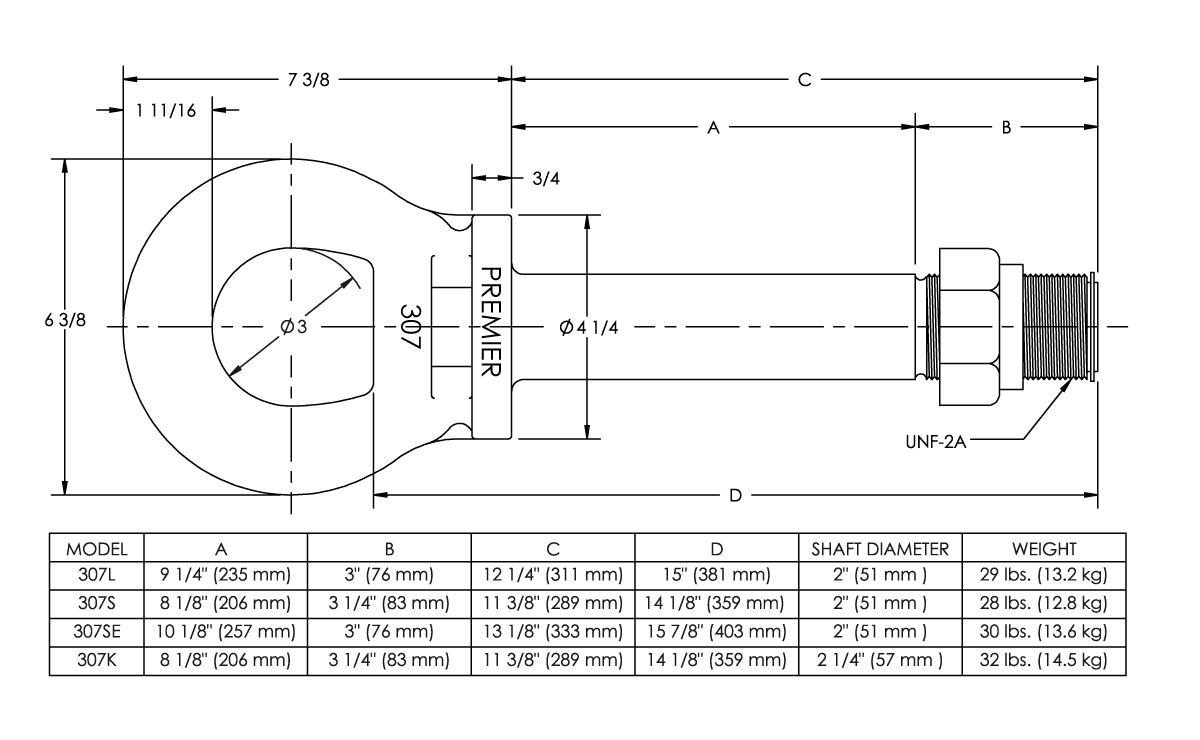

Model #Drawbar Eye DimensionsUnit Weight
307L3" ID, Shaft 2" OD x 12 1/4" L29 lbs. (13.2 kg)
307S3" ID, Shaft 2" OD x 11 3/8" L29 lbs. (13.2 kg)
307SE3" ID, Shaft 2" OD x 13 1/8" L30 lbs. (13.6 kg)
307K3" ID, Shaft 2 1/4" OD x 11 3/8" L32 lbs. (14.5 kg)

MODELS

Model #Part #Description
20810001106Snap Ring
208SPL10001107Snap Ring (for 207K only)
41610001181Locknut
416K10001182Locknut (for 207K only)
1403210000075Wear Gage

REPLACEMENT PART SPECIFICATIONS

Model #Inside Diameter
2081 7/8 in.
208SPL2 1/4 in.
4162 in.
416K2 1/4 in.
